Data Analytics and Visualization

1-0: Analyzing a Single Variable

Prof. Gabe Hope

Narrowing our focus

So far: DataFrames

What can we do with just one of these columns?

	Name	Miles_per_Gallon	Cylinders	Displacement	Horsepower	Weight_in_lbs	Acceleration	Year	Origin
0	chevrolet chevelle malibu	18.0	8	307.0	130.0	3504	12.0	1970-01-01	USA
1	buick skylark 320	15.0	8	350.0	165.0	3693	11.5	1970-01-01	USA
2	plymouth satellite	18.0	8	318.0	150.0	3436	11.0	1970-01-01	USA
3	amc rebel sst	16.0	8	304.0	150.0	3433	12.0	1970-01-01	USA
4	ford torino	17.0	8	302.0	140.0	3449	10.5	1970-01-01	USA
...	...	...	...	...	...	...	...	...	...
401	ford mustang gl	27.0	4	140.0	86.0	2790	15.6	1982-01-01	USA
402	vw pickup	44.0	4	97.0	52.0	2130	24.6	1982-01-01	Europe
403	dodge rampage	32.0	4	135.0	84.0	2295	11.6	1982-01-01	USA
404	ford ranger	28.0	4	120.0	79.0	2625	18.6	1982-01-01	USA
405	chevy s-10	31.0	4	119.0	82.0	2720	19.4	1982-01-01	USA

406 rows × 9 columns

Recall: 3 variable types

• Nomial
• Ordinal
• Quantitative

	Name	Miles_per_Gallon	Cylinders	Displacement	Horsepower	Weight_in_lbs	Acceleration	Year	Origin
0	chevrolet chevelle malibu	18.0	8	307.0	130.0	3504	12.0	1970-01-01	USA
1	buick skylark 320	15.0	8	350.0	165.0	3693	11.5	1970-01-01	USA
2	plymouth satellite	18.0	8	318.0	150.0	3436	11.0	1970-01-01	USA
3	amc rebel sst	16.0	8	304.0	150.0	3433	12.0	1970-01-01	USA
4	ford torino	17.0	8	302.0	140.0	3449	10.5	1970-01-01	USA
5	ford galaxie 500	15.0	8	429.0	198.0	4341	10.0	1970-01-01	USA
6	chevrolet impala	14.0	8	454.0	220.0	4354	9.0	1970-01-01	USA
7	plymouth fury iii	14.0	8	440.0	215.0	4312	8.5	1970-01-01	USA
8	pontiac catalina	14.0	8	455.0	225.0	4425	10.0	1970-01-01	USA
9	amc ambassador dpl	15.0	8	390.0	190.0	3850	8.5	1970-01-01	USA
10	citroen ds-21 pallas	NaN	4	133.0	115.0	3090	17.5	1970-01-01	Europe
11	chevrolet chevelle concours (sw)	NaN	8	350.0	165.0	4142	11.5	1970-01-01	USA
12	ford torino (sw)	NaN	8	351.0	153.0	4034	11.0	1970-01-01	USA
13	plymouth satellite (sw)	NaN	8	383.0	175.0	4166	10.5	1970-01-01	USA
14	amc rebel sst (sw)	NaN	8	360.0	175.0	3850	11.0	1970-01-01	USA

Nominal variables

Recall: 3 variable types

• Nomial
• Ordinal
• Quantitative

origin_data = cars[['Origin']]
origin_data

	Origin
0	USA
1	USA
2	USA
3	USA
4	USA
...	...
401	USA
402	Europe
403	USA
404	USA
405	USA

406 rows × 1 columns

Analyzing a single nominal variable

	Origin
0	USA
1	USA
2	USA
3	USA
4	USA
5	USA
6	USA
7	USA
8	USA
9	USA
10	Europe
11	USA
12	USA
13	USA
14	USA
15	USA
16	USA
17	USA
18	USA
19	USA

What questions could we ask about this data?

What values does our variable take?

Assuming it’s a categorical variable with a finite set of possible values.

	Origin
0	USA
1	USA
2	USA
3	USA
4	USA
5	USA
6	USA
7	USA
8	USA
9	USA
10	Europe
11	USA
12	USA
13	USA
14	USA
15	USA
16	USA
17	USA
18	USA
19	USA

In Pandas, get the unique values in a series object with unique()

origin_series = origin_data['Origin']
origin_series.unique()

array(['USA', 'Europe', 'Japan'], dtype=object)

Explicitly set the type of the column to category

origin_data['Origin'] = origin_data['Origin'].astype('category')
origin_data['Origin'] # View the column

0         USA
1         USA
2         USA
3         USA
4         USA
        ...
401       USA
402    Europe
403       USA
404       USA
405       USA
Name: Origin, Length: 406, dtype: category
Categories (3, object): ['Europe', 'Japan', 'USA']

:::::

What about visualization?

We only have 1 variable to encode…

ggplot() + geom_point(
    data=origin_data,
    mapping=aes(x='Origin'),
)

Not helpful

ggplot() + geom_point(
    data=origin_data,
    mapping=aes(color='Origin'),
)

Very not helpful

How many times does each value occur?

We need to count them!

counts = origin_data.value_counts()
counts

Origin
USA       254
Japan      79
Europe     73
Name: count, dtype: int64

This gives a series, we can convert back to a DataFrame with:

counts = counts.reset_index()
counts

	Origin	count
0	USA	254
1	Japan	79
2	Europe	73

Now we can plot Origin vs. count!

ggplot() + geom_point(
    data=counts,
    mapping=aes(x='Origin', y='count'),
) + scale_y_continuous(limits=[0, None])

Computing statistics

A count is our first example of a statistic: a value of interest computed from our data!

# Our original data
origin_data.head()

	Origin
0	USA
1	USA
2	USA
3	USA
4	USA

counts = origin_data.value_counts().reset_index()
counts

	Origin	count
0	USA	254
1	Japan	79
2	Europe	73

Here we transformed our data, representing it in terms of its count statistics

Components of our Grammar of Graphics

This is one of the missing pieces of our visualization grammar!

• Data
• Aesthetic mappings
• Geometries
• (Statistical) Transforms

• Scales
• Coordinate systems
• Faceting systems
• Annotations

stat in ggplot/lets-plot

Statistical transforms are built-in to ggplot, through the stat option!

New

ggplot() + geom_point(
    data=origin_data, stat='count',
    mapping=aes(x='Origin', y='..count..'),
) + scale_y_continuous(limits=[0, None])

Computed statistics are given names of the form ..stat..

Old

ggplot() + geom_point(
    data=counts,
    mapping=aes(x='Origin', y='count'),
) + scale_y_continuous(limits=[0, None])

Bar plots

Bar geometries use the count stat by default.

ggplot() + geom_bar(
    data=origin_data,
    mapping=aes(x='Origin'),
)

ggplot() + geom_bar(
    data=counts, stat='identity',
    mapping=aes(x='Origin', y='count'),
) + scale_y_continuous(limits=[0, None])

Specify stat='identity' to avoid the count transform

Bar plots

Specifying the fill mapping creates a stacked bar plot showing proportions of a whole.

ggplot() + geom_bar(
    data=origin_data,
    mapping=aes(x='Origin'),
)

ggplot() + geom_bar(
    data=origin_data,
    mapping=aes(fill='Origin'),
)

Pie & donut charts

Pie & donut charts work similarly

ggplot() + geom_bar(
    data=origin_data,
    mapping=aes(fill='Origin'),
)

ggplot() + geom_pie(
    data=origin_data, size=25, hole=0.3,
    mapping=aes(fill='Origin'),
)

size specifies the radius of the pie, hole the fraction of the center removed.

Ordering

NYC subway rides for July 2024, by station

	station_complex	count
417	1 Av (L)	486589
237	103 St (1)	214574
331	103 St (6)	175700
65	103 St (C,B)	90182
299	103 St-Corona Plaza (7)	481987
...	...	...
267	Woodhaven Blvd (J,Z)	27981
13	Woodhaven Blvd (M,R)	338726
425	Woodlawn (4)	106450
253	York St (F)	301072
389	Zerega Av (6)	37238

428 rows × 2 columns

Ordering

How to order all 428 stations?

ggplot() + geom_bar(
    data=rides,
    mapping=aes(x='station_complex', y='count'),
    stat='identity', width=1,
) + scale_x_discrete(lablim=12) + ggsize(3000, 400)

Do we even want to see that many?

Ordering

Order by count!

sorted_rides = rides.sort_values('count', ascending=False)

ggplot() + geom_bar(
    data=sorted_rides.head(25), # Take first 20 rows
    mapping=aes(x='station_complex', y='count'),
    stat='identity', width=1,
) + scale_x_discrete(lablim=12) + ggsize(1000, 400)

Another statistic: mode

The mode is the most frequent value in a dataset

Computing in Pandas:

rides.sort_values('count', ascending=False).head(1)

	station_complex	count
62	Times Sq-42 St (N,Q,R,W,S,1,2,3,7)/42 St (A,C,E)	3794860

Ordinal Variables

Recall: 3 variable types

• Nomial
• Ordinal
• Quantitative

cyl_data = cars[['Cylinders']]
cyl_data.head(5)

	Cylinders
0	8
1	8
2	8
3	8
4	8

Creating an ordinal type

cylinder_type = pd.CategoricalDtype([3, 4, 5, 6, 8], ordered=True)
cyl_data['Cylinders'] = cyl_data['Cylinders'].astype(cylinder_type)
cyl_data.head(5)

	Cylinders
0	8
1	8
2	8
3	8
4	8

Ordinal variables

Maintain the correct order!

ggplot() + geom_bar(
    data=cyl_data,
    mapping=aes(x='Cylinders')
)

ggplot() + geom_bar(
    data=cars,
    mapping=aes(x='Cylinders')
) + scale_x_discrete()

Quantitative Variables

Recall: 3 variable types

• Nomial
• Ordinal
• Quantitative

weight_data = cars[['Weight_in_lbs']]
weight_data

	Weight_in_lbs
0	3504
1	3693
2	3436
3	3433
4	3449
...	...
401	2790
402	2130
403	2295
404	2625
405	2720

406 rows × 1 columns

Analyzing a single quantitative variable

	Weight_in_lbs
0	3504
1	3693
2	3436
3	3433
4	3449
5	4341
6	4354
7	4312
8	4425
9	3850
10	3090
11	4142
12	4034
13	4166
14	3850
15	3563
16	3609
17	3353
18	3761
19	3086

What questions could we ask about this data?

Visualizing a single quantitative variable

ggplot() + geom_point(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs')
) + ggsize(1000, 200)

Visualizing a single quantitative variable

Using a different shape

ggplot() + geom_point(
    data=weight_data, shape=3,
    mapping=aes(x='Weight_in_lbs')
) + ggsize(1000, 200)

Rule plots

ggplot() + geom_vline(
    data=weight_data,
    mapping=aes(xintercept='Weight_in_lbs')
) + ggsize(1000, 200)

Using a different thickness

ggplot() + geom_vline(
    data=weight_data, size=0.1,
    mapping=aes(xintercept='Weight_in_lbs')
) + ggsize(1000, 200)

Visualizing a single quantitative variable

Using a different alpha (opacity)

ggplot() + geom_point(
    data=weight_data, size=5, alpha=0.1,
    mapping=aes(x='Weight_in_lbs')
) + ggsize(1000, 200)

Visualizing a single quantitative variable

Why not use the y-axis?

Set it to something random…

jittered_weights = pd.DataFrame(dict(
    Weight_in_lbs = weight_data['Weight_in_lbs'],
    jitter = np.random.random(len(weight_data))))

ggplot() + geom_point(
    data=jittered_weights,
    mapping=aes(x='Weight_in_lbs', y='jitter')
) + ggsize(1000, 200)

Jitter plots

Tell ggplot what to do when points overlap with position

ggplot() + geom_point(
    data=weight_data, position='jitter',
    mapping=aes(x='Weight_in_lbs')) + ggsize(1000, 150)

Or use geom_jitter

ggplot() + geom_jitter(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs')) + ggsize(1000, 150)

Opinions?

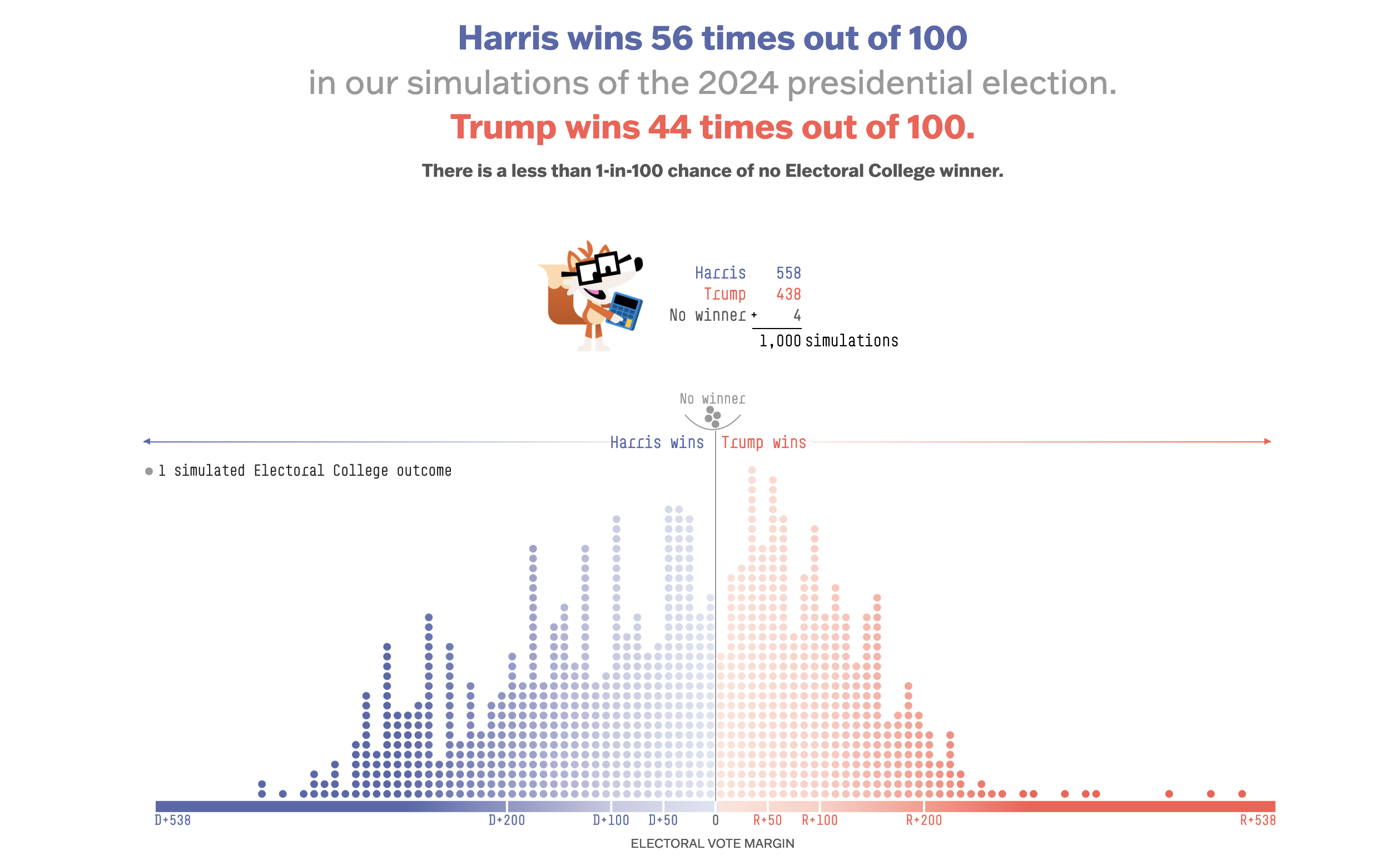

Dot plots

ggplot() + geom_dotplot(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs'),
    stackratio=1., binwidth=50, fill='black',
) + ggsize(1000, 300)

We’ve seen this before!

Dot plots

Histogram transform (bin transform)

counts, edges = np.histogram(weight_data['Weight_in_lbs'], bins=75)

ggplot() + geom_histogram(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs'), bins=75) + ggsize(1000, 300)

Number of bins

counts, edges = np.histogram(weight_data['Weight_in_lbs'], bins=10)

ggplot() + geom_histogram(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs'), bins=10) + ggsize(1000, 300)

Number of bins

Plot = require('@observablehq/plot@0.6.16')
tf = require('@tensorflow/tfjs@4.11.0')
data = FileAttachment("data/mpg.csv").csv({typed: true})
weights = tf.tensor(data.map(d => d['Weight_in_lbs']))
domain = [weights.min().arraySync(), weights.max().arraySync()];
edges = tf.tidy(() => {
  let e = tf.linspace(weights.min().arraySync(), weights.max().arraySync(), bins+1);
  e = e.add(offset).arraySync();
  e.push(10000);
  e.push(0, 0)
  return e;
});
viewof offset = Inputs.range([-100, 100], {value: 0, step: 1, label: "Offset", width: 800})
viewof bins = Inputs.range([3, 250], {step: 1, value: 20, label: "Bins", width: 800})

Plot.plot({
  height: 300,
  width: 1000,
  x: {domain: domain},
  marks: [
    Plot.ruleY([0]),
    Plot.rectY(data, Plot.binX({y: "sum"}, {x: "Weight_in_lbs", thresholds: edges}))
  ]
})

Plot.plot({
  height: 160,
  width: 1000,
  x: {domain: domain},
  marks: [
    Plot.dot(data, Plot.dodgeY({x: "Weight_in_lbs"})),
    Plot.ruleX(edges, {stroke: 'red'})
  ]
})

An aside: cumulative histograms

Histogram transform (bin transform)

What questions are easy to answer with a histogram? What questions are hard?

How could we make them easier?

Cumulative histograms

counts, edges = np.histogram(weight_data['Weight_in_lbs'], bins=10)
centers = (edges[1:] + edges[:-1]) / 2.
ccounts = np.cumsum(counts)

hist = pd.DataFrame(dict(centers=centers,
    edges=edges[1:], ccounts=ccounts))

ggplot() + geom_bar(
    data=hist,
    mapping=aes(x='centers', y='ccounts'),
    stat='identity', width=1)  + ggsize(500, 300)

Cumulative histograms

The height difference between 2 bars tells us the number of observations between them.

Cumulative histograms: bins

viewof bins2 = Inputs.range([3, 250], {step: 1, label: "Bins", width: 800})

Plot.plot({
  height: 400,
  width: 1000,
  x: {domain: domain},
  marks: [
    Plot.ruleY([0]),
    Plot.rectY(data, Plot.binX({y: "sum"}, {x: "Weight_in_lbs", thresholds: bins2}))
  ]
})

Plot.plot({
  height: 400,
  width: 1000,
  x: {domain: domain},
  marks: [
    Plot.ruleY([0]),
    Plot.rectY(data, Plot.binX({y: "sum"}, {x: "Weight_in_lbs", thresholds: bins2, cumulative: true}))
  ]
})

Cumulative histograms are less sensitive to the number of bins. Why?

Cumulative histograms: bins

Taken to the extreme: one bin for every observation.

counts, edges = np.histogram(weight_data['Weight_in_lbs'], bins=1000)

centers = (edges[1:] + edges[:-1]) / 2.
ccounts = np.cumsum(counts)

hist = pd.DataFrame(dict(centers=centers, edges=edges[1:], ccount=ccounts))
ggplot() + geom_line(
    data=hist,
    mapping=aes(x='centers', y='ccount'),
    stat='identity',) + ylab('Cumulative count') + ggsize(1000, 300)

Empirical CDF Plot

If we divide by the total number of observations we get the fraction of data up to a point.

ggplot() + stat_ecdf(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs')
) + scale_y_continuous(breaks=[0, .25, .5, .75, 1.]) + ylab('Quantile')

Empirical CDF Plot

If we divide by the total number of observations we get the fraction of data up to a point.

This is an empirical CDF plot (percentile/quantile plot)

An x percentile is the observation that x% of observations are less than.

ggplot() + stat_ecdf(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs')
) + scale_y_continuous(breaks=[0, .25, .5, .75, 1.]) + ylab('Quantile')

Statistics: median

Percentiles define various useful summary statistics

The median is the point such that 50% of observations are smaller.

In Pandas:

weight_data['Weight_in_lbs'].median()

np.float64(2822.5)

ggplot()  + stat_ecdf(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs')
) + scale_y_continuous(breaks=[0, .25, .5, .75, 1.]) + ylab('Quantile')

Statistics: min/max

Percentiles define various useful summary statistics

The min/max are self-explanatory, but are also the 0% and 100% percentiles of the data.

In Pandas:

weight_data['Weight_in_lbs'].min()

np.int64(1613)

ggplot()  + stat_ecdf(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs')
) + scale_y_continuous(breaks=[0, .25, .5, .75, 1.]) + ylab('Quantile')

Statistics: quartiles

Percentiles define various useful summary statistics

The quartiles are the 25%, 50% (median) and 75% percentiles of the data.

In Pandas:

weight_data['Weight_in_lbs'].quantile(0.25)

np.float64(2226.5)

ggplot() + stat_ecdf(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs')
) + scale_y_continuous(breaks=[0, .25, .5, .75, 1.]) + ylab('Quantile')

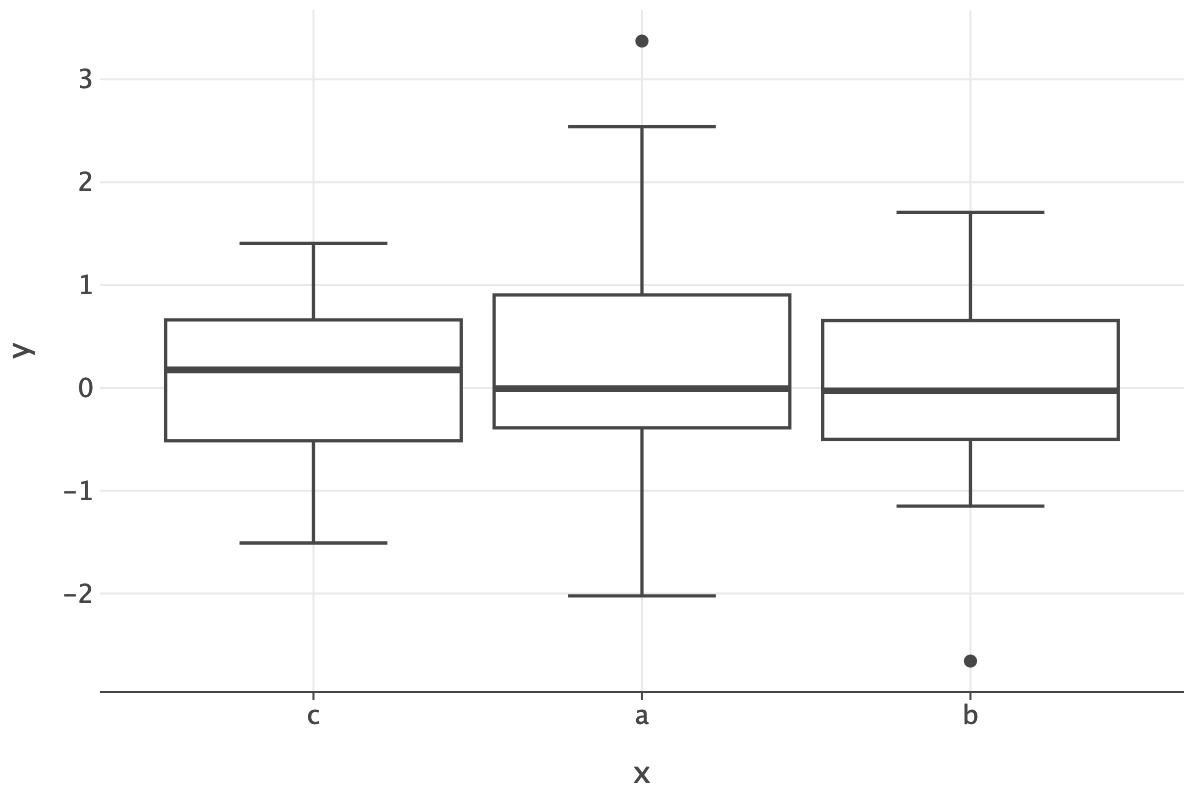

Box-and-Whisker plots

Common to visualize just these statistics.

This is called a box-and-whisker plot, which plots 5 statistics of the data. Typically:

• Min & max
• Median
• 25% and 75% percentiles

ggplot() + geom_boxplot(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs'), orientation='y'
) + scale_y_continuous(limits=[-1.5, 1.5])

Box-and-Whisker plots

Common to visualize just these statistics.

This is called a box-and-whisker plot, which plots 5 statistics of the data. Typically:

• Min & max
• Median
• 25% and 75% percentiles

ggplot() + geom_boxplot(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs'), orientation='y'
) + scale_y_continuous(limits=[-1.5, 1.5])

Box-and-Whisker plots

Whiskers often limited by inter-quartile range (IQR)

The IQR is the distance from the 25% to 75% points.

• Commonly limit whisker distance from median to 1.5 * IQR.
• Further observations shown as points

Box-and-Whisker plots

Position by origin

ggplot() + geom_boxplot(
    data=cars,
    mapping=aes(y='Weight_in_lbs', x='Origin'),
    orientation='x'
)

Scale box width by number of observations

ggplot() + geom_boxplot(
    data=cars, varwidth=True,
    mapping=aes(y='Weight_in_lbs', x='Origin'),
    orientation='x'
)

Returning to number of bins

Number of bins

Some notation:

• Sampled dataset of N (scalar) observations: \{ x_1, ... , x_N \}.
• Divided into K bins \{ b_1, ... , b_K \}, with equal width h.
• Let c_k be the number of observations in bin k.

Number of bins

The proportion (p_k) of observations assigned to bin k is:

p_k = \frac{c_k}{N}

Note that: p_k \geq 0, \quad \sum_{1}^{K} p_k = 1

Therefore \{p_1,...,p_K\} form a probability mass function (PMF) over bins.

ggplot() + geom_histogram(
    data=weight_data, stat='bin',
    mapping=aes(x='Weight_in_lbs', y='..count..'),
    bins=75) + ggsize(400, 200)

ggplot() + geom_histogram(
    data=weight_data, stat='bin',
    mapping=aes(x='Weight_in_lbs', y='..density..'),
    bins=75) + ggsize(400, 200)

Number of bins

Our underlying data is continuous not discrete, can we estimate a probability density function (\hat{p}(x)) instead?

Let the value of b_k be the left edge of bin k (so b_k + h = b_{k+1}).

Number of bins

The integral of the density function over a bin should equal the bin’s proportion. \int_{b_k}^{b_k+h} \hat{p}(x) dx = p_k = \frac{c_k}{N}

Therefore our density function should be: \hat{p}(x)= \frac{p_k}{h}=\frac{c_k}{N\cdot h} \text{for } x \in [b_k, b_k+h)

\hat{p}(x)= 0, \quad \text{for } x \notin [b_1, b_K+h)

Number of bins

Assume our data comes from a plausible reference distribution (p(x)) e.g.

p(x) = \frac{1}{\sigma \sqrt{2 \pi}} \exp\left(-\frac{(x - \mu)^2}{2 \sigma^2} \right)

Where we can estimate the parameters using the sample mean and sample standard deviation:

\mu = \bar{x}, \quad \sigma = s

Estimated normal distribution

normalPlot = tf.tidy(()=> {
  let x = tf.linspace(-5, 5, 1000);
  let normalizer = 1 / Math.sqrt(2 * Math.PI);
  let px = x.square().mul(-0.5).exp().mul(normalizer);
  return tf.stack([x, px]).transpose().arraySync();
});

exdata = tf.randomNormal([700, 1]).arraySync();
Plot.plot({
  x: {label: "x", domain: [-5, 5]},
  y: {label: "pdf(x)"},
  marks: [
    Plot.ruleY([0]),
    Plot.lineY(normalPlot, {x: "0", y: "1", stroke: "black", strokeWidth: 3}),
    Plot.dot(exdata, Plot.dodgeY({x: "0"})),
  ]
})

Number of bins

Compare our histogram estimated pdf, \hat{p}(x), to our reference pdf p(x).

Squared error at x: SE = (p(x) - \hat{p}(x))^2

Integrated squared error:

ISE = \int_{-\infty}^{\infty} (p(x) - \hat{p}(x))^2 dx

Estimated distributions

distributionReducerEx = function(input, bins) {
  let sum = input.length;
  let total = exdata.length;
  let width = bins.x2 - bins.x1;
  return sum / (total * width);
}

Plot.plot({
  x: {label: "x", domain: [-5, 5]},
  y: {label: "pdf(x)"},
  marks: [
    Plot.ruleY([0]),
    Plot.lineY(normalPlot, {x: "0", y: "1", stroke: "black", strokeWidth: 3}),
    Plot.lineY(exdata, Plot.binX({y: distributionReducerEx}, {x: "0", thresholds: 'scott', curve: "step", stroke: "red", strokeWidth: 3})),
    Plot.dot(exdata, Plot.dodgeY({x: "0"})),
  ]
})

\hat{p}(x)= \frac{p_k}{h}=\frac{c_k}{N\cdot h}, \quad \text{for } x \in [b_k, b_k+h)

Number of bins

Compare our histogram estimated pdf, \hat{p}(x), to our reference pdf p(x).

Mean integrated squared error:

MISE = E\left[ \int (p(x) - \hat{p}(x))^2 dx \right]

Expectation over samples of N observations from our reference distribution

Estimated distributions

Plot.plot({
  x: {label: "x", domain: [-5, 5]},
  y: {label: "pdf(x)"},
  marks: [
    Plot.ruleY([0]),
    Plot.lineY(normalPlot, {x: "0", y: "1", stroke: "black", strokeWidth: 3}),
    Plot.lineY(exdata, Plot.binX({y: distributionReducerEx}, {x: "0", thresholds: 'scott', curve: "step", stroke: "red", strokeWidth: 3})),
    Plot.dot(exdata, Plot.dodgeY({x: "0"})),
  ]
})

\hat{p}(x)= \frac{p_k}{h}=\frac{c_k}{N\cdot h}, \quad \text{for } x \in [b_k, b_k+h)

Number of bins

Scott’s rule: Optimal bin width (h) by minimizing MISE:

h^* = \underset{h}{\text{argmin}} MISE \approx 3.5 s \cdot N^{-\frac{1}{3}}

The Freedman-Diaconis rull replaces the sample standard deviation (s) with the interquartile range (IQR).

h^* = 2 IQR\cdot N^{-\frac{1}{3}}

More robust to outliers

viewof nobs = Inputs.range([1, 1000], {label: "Observations", value: 100, step: 1})
viewof nbins = Inputs.range([0, 100], {label: "Number of bins", value: 20, step: 1})

ndataall = tf.randomNormal([1000, 1]);
ndata = ndataall.slice([0], [nobs])
nedges = tf.tidy(() => {
  let e = tf.linspace(ndata.min().arraySync(), ndata.max().arraySync(), nbins+1);
  e = e.arraySync();
  e.push(5);
  e.unshift(-5)
  return e;
})

distributionReducer = function(input, bins) {
  let sum = input.length;
  let total = bins.data.length;
  let width = bins.x2 - bins.x1;
  return sum / (total * width);
}

Plot.plot({
  x: {label: "x", domain: [-5, 5]},
  y: {label: "pdf(x)"},
  marks: [
    Plot.dot(ndata.arraySync(), Plot.dodgeY({x: "0", stroke: 'lightgrey'})),
    Plot.ruleY([0]),
    Plot.lineY(ndata.arraySync(), Plot.binX({y: distributionReducer}, {x: "0", thresholds: 'scott', curve: "step", stroke: "blue", strokeWidth: 3})),
    Plot.lineY(ndata.arraySync(), Plot.binX({y: distributionReducer}, {x: "0", thresholds: nedges, curve: "step", strokeWidth: 3, stroke: "red"})),
    Plot.lineY(normalPlot, {x: "0", y: "1", stroke: "black", strokeWidth: 3}),

  ]
})

Kernel density plots

Histogram sensitivity

edges3 = {
  let e = tf.linspace(weights.min().arraySync(), weights.max().arraySync(), bins3+1);
  e = e.add(offset3).arraySync();
  e.push(10000);
  e.push(0, 0)
  return e;
}
viewof offset3 = Inputs.range([-100, 100], {value: 0, step: 1, label: "Offset", width: 800})
viewof bins3 = Inputs.range([3, 250], {step: 1, value: 20, label: "Bins", width: 800})

Plot.plot({
  height: 300,
  width: 1000,
  x: {domain: [weights.min().arraySync(), weights.max().arraySync()]},
  marks: [
    Plot.ruleY([0]),
    Plot.rectY(data, Plot.binX({y: "sum"}, {x: "Weight_in_lbs", thresholds: edges3}))
  ]
})

Plot.plot({
  height: 160,
  width: 1000,
  x: {domain: [weights.min().arraySync(), weights.max().arraySync()]},
  marks: [
    Plot.dot(data, Plot.dodgeY({x: "Weight_in_lbs"})),
    Plot.ruleX(edges3, {stroke: 'red'})
  ]
})

Bars at observations

One observation

ggplot(
    data=weight_data[:1],
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=50) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])

Two observations

ggplot(
    data=weight_data[:2],
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=50) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])

Bars at observations

One observation

ggplot(
    data=weight_data[:1],
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=50) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])

Indicator function I(\text{predicate}) = \begin{cases} 1 \text{ if predicate is true} \\ 0 \text{ otherwise} \\ \end{cases}

Our function: \hat{p}(x) = \frac{1}{2h} I\left(\frac{|x - x_1|}{h} \leq 1\right)

h is the width of the bar or bandwidth

Bars at observations

Add bars where they overlap!

Two observations

ggplot(
    data=weight_data[:2],
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=50) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])

Three observations

ggplot(
    data=weight_data[:3],
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=50) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])

Bars at observations

Add bars where they overlap!

Three observations

ggplot(
    data=weight_data[:3],
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=50) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])

Five observations

ggplot(
    data=weight_data[:5],
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=50) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])

Bars at observations

All observations

ggplot(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=50) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])\
        + ggsize(1000, 400)

With N observations:

\hat{p}(x) = \frac{1}{2Nh} \sum_{i=1}^N I\left(\frac{|x - x_i|}{h} \leq 1\right)

Bars at observations

Varying the bar width

Three observations

ggplot(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=20) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])

Five observations

ggplot(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=200) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])

Bars at observations

Sharp drop-off not ideal.

ggplot(
    data=weight_data[:1],
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=50) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])

Replace indicator with a smooth function

ggplot(
    data=weight_data[:1],
    mapping=aes(x='Weight_in_lbs')
) + geom_density(kernel='gaussian', bw=50) \
  + geom_point(size=10) + scale_x_continuous(limits=[3000, 4000])

Gaussian kernel

Smooth drop-off:

\hat{p}(x) = \frac{1}{2Nh} \sum_{i=1}^N \phi\left(\frac{x - x_i}{h}\right), \quad \phi(u) = \frac{1}{\sqrt{2 \pi}} \exp\left(-\frac{u^2}{2} \right)

Bars at observations

Gaussian

ggplot(
    data=weight_data[:3],
    mapping=aes(x='Weight_in_lbs')
) + geom_density(kernel='gaussian', bw=50) \
  + geom_point(size=10) + scale_x_continuous(limits=[3000, 4000])

Uniform

ggplot(
    data=weight_data[:3],
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=50) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])

Bars at observations

Gaussian

ggplot(
    data=weight_data[:5],
    mapping=aes(x='Weight_in_lbs')
) + geom_density(kernel='gaussian', bw=50) \
  + geom_point(size=10) + scale_x_continuous(limits=[3000, 4000])

Uniform

ggplot(
    data=weight_data[:5],
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=50) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])

Bars at observations

Gaussian

ggplot(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs')
) + geom_density(kernel='gaussian', bw=50) \
  + geom_point(size=10) + scale_x_continuous(limits=[3000, 4000])

Uniform

ggplot(
    data=weight_data,
    mapping=aes(x='Weight_in_lbs')) + \
    geom_density(kernel='rectangular', bw=50) + \
    geom_point(size=10)  + scale_x_continuous(limits=[3000, 4000])

Kernel functions

In general, we can use any kernel function k(\cdot) \hat{p}(x) = \frac{1}{2Nh} \sum_{i=1}^N k\left(\frac{x - x_i}{h}\right)

If \int_{-\infty}^{\infty} k(u)du = 1 and k(u) \geq 0, \forall u, then \hat{p}(x) is a valid probability density function!

h is the bandwidth, which controls the smoothness

Choosing bandwidth and kernel

viewof kdeobs = Inputs.range([1, 1000], {label: "Observations", value: 100, step: 1})

viewof bw = Inputs.range([0.01, 2], {label: "Bandwidth", step: 0.01})

viewof kernel = Inputs.select(new Map([["Square", uniform], ["Triangle", triangle], ["Gaussian", gaussian], ["Epanechnikov", epanechnikov]]), {label: "Kernel"})

kdedata = kdedataall.slice([0], [kdeobs])
kdedataall = tf.randomNormal([1000, 1])

kdeLine = tf.tidy(() => {
  let x = tf.linspace(-5, 5, 1000).reshape([-1]).arraySync();
  return kde(kernel(bw), x)(kdedata.reshape([-1]).arraySync());
});

//https://bl.ocks.org/mbostock/4341954#faithful.json
kde = (kernel, thds) => V => thds.map(t => [t, d3.mean(V, d => kernel(t - d))])

//https://bl.ocks.org/mbostock/4341954#faithful.json
epanechnikov = bandwidth => x =>
  Math.abs((x /= bandwidth)) <= 1 ? (0.75 * (1 - x * x)) / bandwidth : 0

//https://bl.ocks.org/mbostock/4341954#faithful.json
uniform = bandwidth => x =>
  Math.abs((x / bandwidth)) <= 1 ? 1 : 0

gaussian = bandwidth => x =>
  Math.exp(- 0.5 * (x / bandwidth) * (x / bandwidth))

triangle = bandwidth => x =>
  Math.max(1 - (Math.abs(x) / bandwidth), 0)

Plot.plot({
  height: 400,
  width: 1000,
  x: {label: "x", domain: [-5, 5]},
  y: {label: "Density"},
  marks: [
    Plot.dot(kdedata.arraySync(), Plot.dodgeY({x: "0"})),
    Plot.lineY(kdeLine, {x: "0", y: "1"}),
  ]
})

Choosing bandwidth

Consider a plausible reference distribution (p(x)) e.g.

p(x) = \frac{1}{\sigma \sqrt{2 \pi}} \exp\left(-\frac{(x - \mu)^2}{2 \sigma^2} \right)

Where we can estimate the parameters using the sample mean and sample standard deviation:

\mu = \bar{x}, \quad \sigma = s

Choosing bandwidth

Minimize mean integrated squared error

MISE = \int E\left[ (p(x) - \hat{p}(x))^2 \right] dx

h^* = \underset{h}{\text{argmin}} MISE Lots of painful math! But if kernel is Gaussian (normal) and underlying distribution is Normal then:

h^* \approx 1.06 s \cdot N^{-\frac{1}{5}}

Quick tour of other single variable visualizations

Waffle plots

Show individual observations within categorical bars.

Simple example

Plot.waffleY([212, 207, 315, 11], {x: ["apples", "bananas", "oranges", "pears"]}).plot({height: 420})

Survey of Syrian teeagers from the Economist

survey = [
  {question: "don’t go out after dark", yes: 96},
  {question: "do no activities other than school", yes: 89},
  {question: "engage in political discussion and social movements, including online", yes: 10},
  {question: "would like to do activities but are prevented by safety concerns", yes: 73}
]

Plot.plot({
  axis: null,
  label: null,
  height: 420,
  marginTop: 20,
  marginBottom: 70,
  marks: [
    Plot.axisFx({lineWidth: 10, anchor: "bottom", dy: 20}),
    Plot.waffleY({length: 1}, {y: 120, fillOpacity: 0.4, rx: "100%"}),
    Plot.waffleY(survey, {fx: "question", y: "yes", rx: "100%", fill: "orange"}),
    Plot.text(survey, {fx: "question", text: (d) => (d.yes / 120).toLocaleString("en-US", {style: "percent"}), frameAnchor: "bottom", lineAnchor: "top", dy: 6, fill: "orange", fontSize: 24, fontWeight: "bold"})
  ]
})

Not yet implemented in Lets-Plot.

Swarm plots

Similar to a dotplot, but don’t align observations into bins.

For each new observation, increase it’s y-coordinate until it no longer intersects with any other points.

Plot.plot({
  height: 160,
  marks: [
    Plot.dotX(cars, Plot.dodgeY({x: "weight (lb)", title: "name", fill: "currentColor"}))
  ]
})

Can also spread from center.

Plot.plot({
  height: 180,
  marks: [
    Plot.dot(cars, Plot.dodgeY("middle", {x: "weight (lb)", fill: "currentColor"}))
  ]
})

Sensitive to the order points are added!

Sorted points

Plot.plot({
  height: 180,
  marks: [
    Plot.dotX(cars, Plot.dodgeY({x: "weight (lb)", title: "name", fill: "currentColor", sort: "weight (lb)"}))
  ]
})

Reverse-sorted points

Plot.plot({
  height: 180,
  marks: [
    Plot.dotX(cars, Plot.dodgeY({x: "weight (lb)", title: "name", fill: "currentColor", sort: "weight (lb)", reverse: true}))
  ]
})

Sadly, Lets-Plot implementation seems broken for now.

Violin plots

Symmetric kernel density estimate.

ggplot({'x': x, 'y1': y1, 'y2': y2}) + \
    geom_violin(aes('x', 'y1'), trim=False, fill='red')

Percentogram

Similar to a histogram, but instead of each bin having a fixed width each bin has a fixed number of observations or percentile

function percentiles(numbers) {
  const sorted = d3.sort(numbers);
  return d3.range(0, 101).map((q) => d3.quantileSorted(sorted, q / 100));
}

numbers = Float64Array.from({length: 10000}, d3.randomNormal.source(d3.randomLcg(3))())

Plot.plot({
  color: {
    legend: true,
    type: "quantize",
    scheme: "spectral",
    n: 10,
    label: "percentile"
  },
  y: {label: "density"},
  marks: [
    Plot.rectY(numbers, {
      fill: (d, i) => i,
      ...Plot.binX({
        y: (bin, {x1, x2}) => 1 / (x2 - x1),
        thresholds: percentiles
      })
    }),
    Plot.ruleY([0])
  ]
})

Percentogram of a normal distribution

car_weights = cars.map((d) => d["weight (lb)"])

Plot.plot({
  color: {
    legend: true,
    type: "quantize",
    scheme: "spectral",
    n: 10,
    label: "percentile"
  },
  y: {label: "density"},
  marks: [
    Plot.rectY(car_weights, {
      fill: (d, i) => i,
      ...Plot.binX({
        y: (bin, {x1, x2}) => 1 / (x2 - x1),
        thresholds: percentiles
      })
    }),
    Plot.ruleY([0])
  ]
})

Percentogram of a car weights
